  • Name : HDF Moulded Door Skin
    HDF Moulded Door Skin
    Description :
    Evergreen Moulded Door Skins have high quality engineered wood fibre door facings. Incorporating state-of-the-art technology, we are able to post-form wood fibreboards into raised panels which is a more advanced method than the traditional moulded door skin process. We call it the Ever-Form Door Skin Process. Under intense heat and pressure, our fibre sheets are moulded into various types of designs and are delivered to independent door manufacturers world-wide.

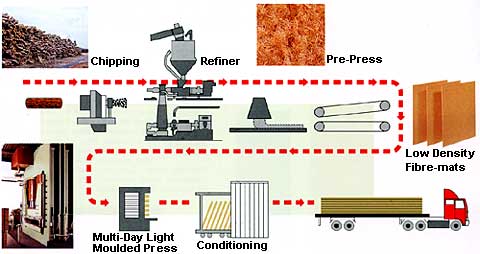

    Ever-Form Door Skin Process


    Wood logs, after debarking, are made into chips and later fibres through the refining process. The fibres are then pre-pressed into low density fibre-mats by mixing glue and wax in order to form a ligno cellulose bonding between the fibres. After a special chemical treatment, the low density fibre-mats are prime coated with melamine paper and are pressed together under high pressure and intense heat in a multi-daylight moulded press. Various designs and dies are utilised to form the high density door skin panel. Because of the high quality melamine primer, the door skin face is good for staining and painting, and is extremely resistant to water and scratches. To enhance dimensional stability, the door skins are chemically treated and conditioned to suit all weather conditions. Studies and tests show that our Ever-Form door skins perform as well as conventional hardboard moulded door skins.



    Dimensions For Moulded Two Panel Oak Grain

    Width

    A

    B
    C
    (in)
    (mm)
    (mm)
    (mm)
    24.5
    625
    380
    122
    26.5
    675
    380
    147
    28.5
    725
    500
    112
    30.5
    775
    500
    140
    32.5
    830
    580
    125
    34.5
    870
    580
    145
    35
    890
    580
    155

    Dimensions For Moulded Four Panel Pine Grain

    Width

    A

    B
    C
    C
    (in)
    (mm)
    (mm)
    (mm)
    (mm)
    24.5
    625
    170
    100
    93
    26.5
    675
    170
    100
    118
    28.5
    725
    170
    100
    142
    30.5
    775
    220
    110
    113
    32.5
    830
    220
    110
    140
    34.5
    870
    270
    110
    110
    37.5
    950
    270
    110
    150

    Dimensions For Moulded Six Panel Pine Grain

    Width

    A

    B
    C
    C
    (in)
    (mm)
    (mm)
    (mm)
    (mm)
    24.5
    625
    150
    100
    113
    26.5
    675
    150
    100
    138
    28.5
    725
    200
    100
    113
    30.5
    775
    225
    100
    113
    32.5
    830
    250
    100
    115
    34.5
    870
    250
    100
    135
    37.5
    950
    300
    100
    125

    * Adjustable from 120-160 mm



    Company Particular
    Company : Evergreen Fibreboard Bhd
    Fax : 607-4542 933
    Address : PLO 22 Parit Raja Industrial Estate<br>86400 Parit Raja, Batu Pahat, <br>Johor,Malaysia.
